OK, enough of the intros - let’s get into some sound.

In this section we’ll cover the basics of triggering and manipulating synths. Synth is short for synthesiser which is a fancy word for something which creates sounds. Typically synths are quite complicated to use - especially analog synths such as Eurorack modules connected together by a mess of wires. However, Sonic Pi gives you much of that power in a very simple and approachable manner.

Don’t be fooled by the immediate simplicity of Sonic Pi’s interface. You can get very deep into very sophisticated sound manipulation if that’s your thing. Hold on to your hats…

Take a look at the following code:

This is where it all starts. Go ahead, copy and paste it into the code window at the top of the app (the big white space under the Run button). Now, press Run…

Beep!

Intense. Press it again. And again. And again…

Woah, fun! I’m sure you could keep doing that all day. But wait, before you lose yourself in an infinite stream of beeps, try changing the number:

Can you hear the difference? Try a lower number:

So, lower numbers make lower pitched beeps and higher numbers make higher pitched beeps. Just like on a piano, the keys at the lower part of the piano (the left hand side) play lower notes and the keys on the higher part of the piano (the right hand side) play higher notes.

It turns out that the C of the 4th octave (C in English notation) is identified by the number 60. play 60 therefore plays the C of the 4th octave. To play the next piano key to the right, you have to add 1 to 60 and then type play 61, which in this case is the black key of the C sharp. To play the D, the next key to the right, play 62.

Don’t worry if this means nothing to you - it didn’t to me when I first started. All that matters right now is that you know that low numbers make lower beeps and high numbers make higher beeps.

Chords

Playing a note is quite fun, but playing many at the same time can be even better. Try it:

Jazzy! So, when you write multiple plays, they all play at the same time. Try it for yourself - which numbers sound good together? Which sound terrible? Experiment, explore and find out for yourself.

Melody

So, playing notes and chords is fun - but how about a melody? What if you wanted to play one note after another and not at the same time? Well, that’s easy, you just need to sleep between the notes:

How lovely, a little arpeggio. So what does the 1 mean in sleep 1? Well it means the duration of the sleep. It actually means sleep for one beat, but for now we can think about it as sleeping for 1 second. So, what if we wanted to make our arpeggio a little faster? Well, we need to use shorter sleep values. What about a half i.e. 0.5:

Notice how it plays faster. Now, try for yourself, change the times - use different times and notes.

One thing to try is in-between notes such as play 52.3 and play 52.63. There’s absolutely no need to stick to standard whole notes. Play around and have fun.

Traditional Note Names

For those of you that already know some musical notation (don’t worry if you don’t - you don’t need it to have fun) you might want to write a melody using note names such as C and F# rather than numbers. Sonic Pi has you covered. You can do the following:

Remember to put the colon : in front of your note name so that it goes pink. Also, you can specify the octave by adding a number after the note name:

If you want to make a note sharp, add an s after the note name such as play :Fs3 and if you want to make a note flat, add a b such as play :Eb3.

There’s also a handy shortcut for a rest (a musical way of saying not to play anything instead of a note) using :r, :rest or nil.

Now go wild and have fun making your own tunes.

As well as allowing you to control which note to play or which sample to trigger, Sonic Pi provides a whole range of options to craft and control the sounds. We’ll be covering many of these in this tutorial and there’s extensive documentation for each in the help system. However, for now we’ll introduce two of the most useful: amplitude and pan. First, let’s look at what options actually are.

Options

Sonic Pi supports the notion of options (or opts for short) for its synths. Opts are controls you pass to play which modify and control aspects of the sound you hear. Each synth has its own set of opts for finely tuning its sound. However, there are common sets of opts shared by many sounds such as amp: and envelope opts (covered in another section).

Opts have two major parts, their name (the name of the control) and their value (the value you want to set the control at). For example, you might have an opt called cheese: and want to set it with a value of 1.

Opts are passed to calls to play by using a comma , and then the name of the opt such as amp: (don’t forget the colon :) and then a space and the value of the opt. For example:

(Note that cheese: isn’t a valid opt, we’re just using it as an example).

You can pass multiple opts by separating them with a comma:

The order of the opts doesn’t matter, so the following is identical:

Opts that aren’t recognised by the synth are just ignored (like cheese and beans which are clearly ridiculous opt names!)

If you accidentally use the same opt twice with different values, the last one wins. For example, beans: here will have the value 2 rather than 0.5:

Many things in Sonic Pi accept opts, so just spend a little time learning how to use them and you’ll be set! Let’s play with our first opt: amp:.

Amplitude

Amplitude is a computer representation of the loudness of a sound. A high amplitude produces a loud sound and a low amplitude produces a quiet sound. Just as Sonic Pi uses numbers to represent time and notes, it uses numbers to represent amplitude. An amplitude of 0 is silent (you’ll hear nothing) whereas an amplitude of 1 is normal volume. You can even crank up the amplitude higher to 2, 10, 100. However, you should note that when the overall amplitude of all the sounds gets too high, Sonic Pi uses what’s called a compressor to squash them all to make sure things aren’t too loud for your ears. This can often make the sound muddy and strange. So try to use low amplitudes, i.e. in the range 0 to 0.5 to avoid compression.

Amp it up

To change the amplitude of a sound, you can use the amp: opt. For example, to play at half amplitude pass 0.5:

To play at double amplitude pass 2:

The amp: opt only modifies the call to play it’s associated with. So, in this example, the first call to play is at half volume and the second is back to the default (1):

Of course, you can use different amp: values for each call to play:

Panning

Another fun opt to use is pan: which controls the panning of a sound in stereo. Panning a sound to the left means that you hear it out of the left speaker, and panning it to the right means you hear it out of your right speaker. For our values, we use a -1 to represent fully left, 0 to represent center and 1 to represent fully right in the stereo field. Of course, we’re free to use any value between -1 and 1 to control the exact positioning of our sound.

Let’s play a beep out of the left speaker:

Now, let’s play it out of the right speaker:

Finally let’s play it back out of the center of both (the default position):

Now, go and have fun changing the amplitude and panning of your sounds!

So far we’ve had quite a lot of fun making beeps. However, you’re probably starting to get bored of the basic beep noise. Is that all Sonic Pi has to offer? Surely there’s more to live coding than just playing beeps? Yes there is, and in this section we’ll explore some of the exciting range of sounds that Sonic Pi has to offer.

Synths

Sonic Pi has a number of different instruments it calls synths (which is short for synthesisers). Whereas samples represent pre-recorded sounds, synths are capable of generating new sounds depending on how you control them (which we’ll explore later in this tutorial). Sonic Pi’s synths are very powerful and expressive and you’ll have a lot of fun exploring and playing with them. First, let’s learn how to select the current synth to use.

Buzzy saws and prophets

A fun sound is the saw wave - let’s give it a try:

Let’s try another sound - the prophet:

How about combining two sounds. First one after another:

Now multiple sounds at the same time (by not sleeping between successive calls to play):

Notice that the use_synth command only affects the following calls to play. Think of it like a big switch - new calls to play will play whatever synth it’s currently pointing to. You can move the switch to a new synth with use_synth.

Discovering Synths

To see which synths Sonic Pi has for you to play with take a look at the Synths option in the menu at the bottom of this help screen (between Examples & Fx). There are over 20 to choose from. Here are a few of my favourites:

• :prophet
• :dsaw
• :fm
• :tb303
• :pulse

Now play around with switching synths during your music. Have fun combining synths to make new sounds as well as using different synths for different sections of your music.

In an earlier section, we looked at how we can use the sleep command to control when to trigger our sounds. However, we haven’t yet been able to control the duration of our sounds.

In order to give us a simple, yet powerful means of controlling the duration of our sounds, Sonic Pi provides the notion of an ADSR amplitude envelope (we’ll cover what ADSR means later in this section). An amplitude envelope offers two useful aspects of control:

• control over the duration of a sound
• control over the amplitude of a sound

Duration

The duration is the length the sound lasts for. A longer duration means that you hear the sound for longer. Sonic Pi’s sounds all have a controllable amplitude envelope, and the total duration of that envelope is the duration of the sound. Therefore, by controlling the envelope you control the duration.

Amplitude

The ADSR envelope not only controls duration, it also gives you fine control over the amplitude of the sound. All audible sounds start and end silent and contain some non-silent part in-between. Envelopes allow you to slide and hold the amplitude of non-silent parts of the sound. It’s like giving someone instructions on how to turn up and down the volume of a guitar amplifier. For example you might ask someone to “start at silence, slowly move up to full volume, hold it for a bit, then quickly fall back to silence.” Sonic Pi allows you to program exactly this behaviour with envelopes.

Just to recap, as we have seen before, an amplitude of 0 is silence and an amplitude of 1 is normal volume.

Now, let us look at each of the parts of the envelopes in turn.

Release Phase

The only part of the envelope that’s used by default is the release time. This is the time it takes for the synth’s sound to fade out. All synths have a release time of 1 which means that by default they have a duration of 1 beat (which at the default BPM of 60 is 1 second):

The note will be audible for 1 second. Go ahead and time it :-) This is short hand for the longer more explicit version:

Notice how this sounds exactly the same (the sound lasts for one second). However, it’s now very easy to change the duration by modifying the value of the release: opt:

We can make the synth sound for a very short amount of time by using a very small release time:

The duration of the release of the sound is called the release phase and by default is a linear transition (i.e. a straight line). The following diagram illustrates this transition:

The vertical line at the far left of the diagram shows that the sound starts at 0 amplitude, but goes up to full amplitude immediately (this is the attack phase which we’ll cover next). Once at full amplitude it then moves in a straight line down to zero taking the amount of time specified by release:. Longer release times produce longer synth fade outs.

You can therefore change the duration of your sound by changing the release time. Have a play adding release times to your music.

Attack Phase

By default, the attack phase is 0 for all synths which means they move from 0 amplitude to 1 immediately. This gives the synth an initial percussive sound. However, you may wish to fade your sound in. This can be achieved with the attack: opt. Try fading in some sounds:

You may use multiple opts at the same time. For example for a short attack and a long release try:

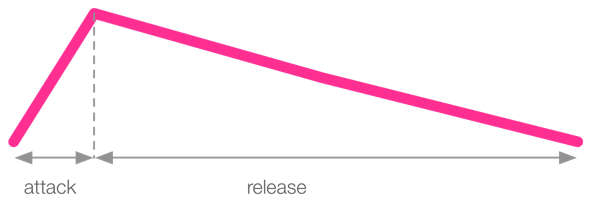

This short attack and long release envelope is illustrated in the following diagram:

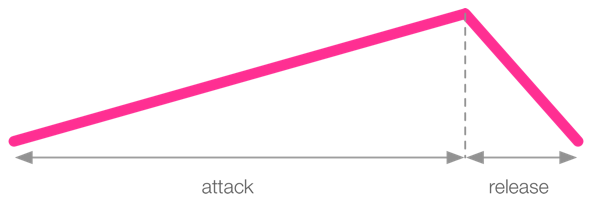

Of course, you may switch things around. Try a long attack and a short release:

Finally, you can also have both short attack and release times for shorter sounds.

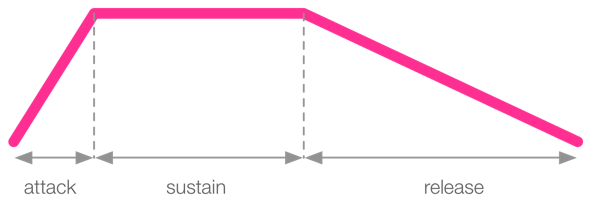

Sustain Phase

In addition to specifying attack and release times, you may also specify a sustain time to control the sustain phase. This is the time for which the sound is maintained at full amplitude between the attack and release phases.

The sustain time is useful for important sounds you wish to give full presence in the mix before entering an optional release phase. Of course, it’s totally valid to set both the attack: and release: opts to 0 and just use the sustain to have absolutely no fade in or fade out to the sound. However, be warned, a release of 0 can produce clicks in the audio and it’s often better to use a very small value such as 0.2.

Decay Phase

For an extra level of control, you can also specify a decay time. This is a phase of the envelope that fits between the attack and sustain phases and specifies a time where the amplitude will drop from the attack_level: to the decay_level: (which unless you explicitly set it will be set to the sustain_level:). By default, the decay: opt is 0 and both the attack and sustain levels are 1 so you’ll need to specify them for the decay time to have any effect:

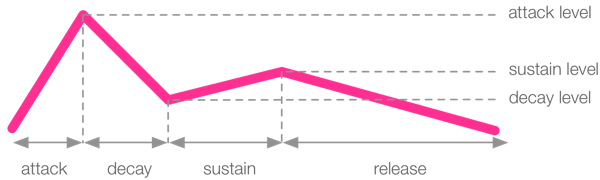

Decay Level

One last trick is that although the decay_level: opt defaults to be the same value as sustain_level: you can explicitly set them to different values for full control over the envelope. This allows you to to create envelopes such as the following:

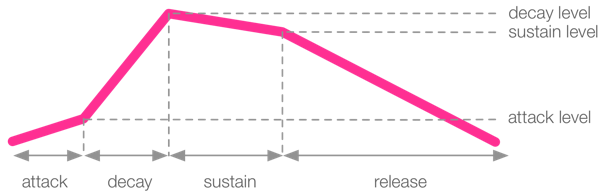

It’s also possible to set the decay_level: to be higher than sustain_level::

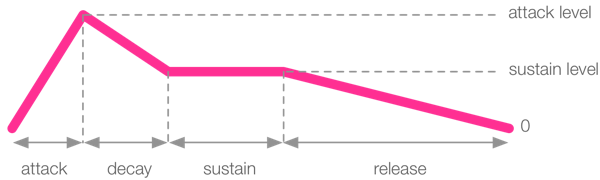

ADSR Envelopes

So to summarise, Sonic Pi’s ADSR envelopes have the following phases:

1. attack - time from 0 amplitude to the attack_level,
2. decay - time to move amplitude from attack_level to decay_level,
3. sustain - time to move the amplitude from decay_level to sustain_level,
4. release - time to move amplitude from sustain_level to 0

It’s important to note that the duration of a sound is the summation of the times of each of these phases. Therefore the following sound will have a duration of 0.5 + 1 + 2 + 0.5 = 4 beats:

Now go and have a play adding envelopes to your sounds…
